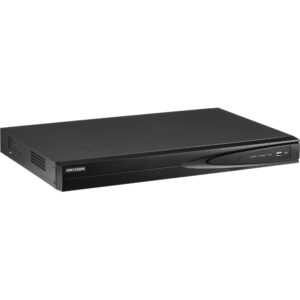

HIKVISION DS-7108HGHI-F1

HIKVISION DS-7108HGHI-F1

20,344.00

PART NUMBER: DS-7108HGHI-F1

SKU: DS-7108HGHI-F1 Categories: ,
  • Reviews (0)
  • Specification
  • Download

Reviews

There are no reviews yet.


Only logged in customers who have purchased this product may leave a review.

Recording
Video Compression
H.264+/H.264
Encoding Resolution
When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: 4CIF/2CIF@6fps; CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video Bitrate
32 Kbps to 4 Mbps
Dual Stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bit Rate
64 Kbps
Video And Audio
IP Video Input
Up to 8-ch Up to 1080p resolution Support H.264+/H.264 IP cameras
Analog Video Input
8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Turbo HD Input
1080p25, 1080p30, 720p25, 720p30
AHD Input
1080p25, 1080p30, 720p25, 720p30
HDCVI Input
1080p25, 1080p30, 720p25, 720p30
CVBS Input
Support
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
Reuse the first audio input
Synchronous Playback
8-ch
VGA/HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Red
Remote Connections
128
Network Protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface
1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
SATA
SATA
Capacity
Up to 6 TB capacity for each disk
Alarm In/Out
N/A
USB Interface
Rear panel: 2 × USB 2.0
General
Power Supply
12 VDC
Consumption (Without HDD)
≤ 12 W
Work Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Dimensiones (W × D × H)
200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weights (Without HDD)
≤ 0.8 kg (1.8 lb)

No download

exchange rate

Price change

Due to unstable exchange,

please call 09033393766 or email sales@microviewng.com for current products prices.
