ES-48-LITE

Edge Switch Lite 48port
Edge Switch Lite 48port

ES-48-LITE

ES-8-150W
Ubiquiti ES-48-500w ES-48-500W
0 out of 5
( There are no reviews yet. )

₦216,960.80

ES-48-LITE

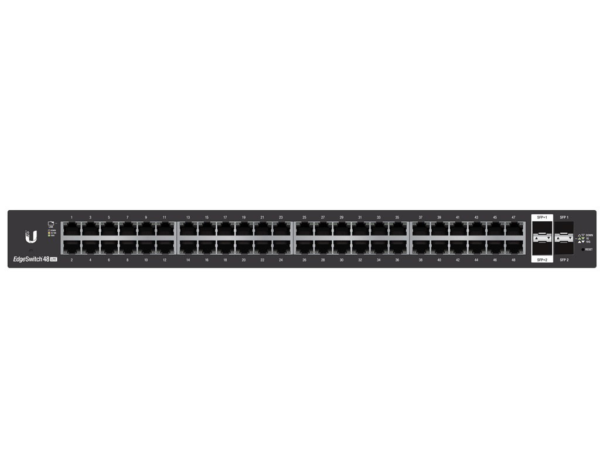

Ubiquiti EdgeSwitch ES-48-Lite

SKU: ES-48-LITE Categories: ,

Out of stock

  • Description
  • Reviews (0)
  • Download

Description

specification

Part Number: ES-48-LITE
Management features
Switch type  What switch device has, managed or unmanaged. Managed
Quality of Service (QoS) support Yes
Web-based management  Using a website/web application to manage something. Yes
Traffic classification Yes
System event log Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity  The number of basic switching RJ-45 Ethernet ports (sockets). 48
Basic switching RJ-45 Ethernet ports type  The type/category of basic switching RJ-45 Ethernet ports (sockets). Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 48
Installed SFP modules quantity  An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The "SFP ports quantity" is the number of ports for SFP connections in a device. 2
Installed SFP+ modules quantity  An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device. 2
Console port RJ-45
Network
Networking standards  The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3x
10G support  The product can use Oracle 10G, which is a database management system introduced in 2003. No
Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T
Port mirroring Yes
Flow control support Yes
Link aggregation Yes
Broadcast storm control Yes
Spanning tree protocol Yes
VLAN support  A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. Yes
Number of VLANs 255
Optical fiber
Switching optical modules type 100 Gigabit Ethernet
Data transmission
Switching capacity  The data transfer capacity of the switch per second. 140
Throughput 104.16
MAC address table  The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. 8000
Number of queues 8
Jumbo frames support Yes
Security
DHCP features DHCP server
Access Control List (ACL) Yes
Access Control List (ACL) rules 10
IGMP snooping Yes
Security algorithms  Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. SSH,SSL/TLS
Multicast features
Multicast support Yes
Protocols
Management protocols SNMP v1/v2/v3, Telnet
Design
Rack mounting  The type of mounting that can position devices in a shelving system (rack). Yes
Form factor  The shape or design of the product. 1U
Product colour  The colour e.g. red, blue, green, black, white. Black
LED indicators Yes
Certification CE, FCC, IC
Power
AC input voltage  The voltage of the AC electricity that is inpitted into the product. 100 – 240
AC input voltage  The voltage of the AC electricity that is inputted into the product. 100 – 240
AC input frequency 50 – 60
Power consumption (max)  The maximum amount of power used by the device. 56
Power over Ethernet (PoE)
Power over Ethernet (PoE)  The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. No
Operational conditions
Operating temperature (T-T)  The minimum and maximum temperatures at which the product can be safely operated. -5 – 40
Operating relative humidity (H-H) 5 – 95
Weight & dimensions
Width  The measurement or extent of something from side to side. 443
Depth  The distance from the front to the back of something. 286
Height  The measurement of the product from head to foot or from base to top. 43
Weight  Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 3.56

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

DatasheetUbiquiti,

Quick Start guide
